Using Draft Control

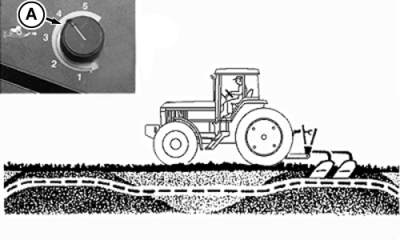

When load/depth control is turned to numbered area (A), allows depth and load control to be varied as ground conditions require. The setting of the control depends on implement being used and field or soil conditions.

Turning the control counter clockwise reduces draft response.

Turning the control clockwise increases draft response. With the control turned to a higher number (B), the implement is raised as resistance (soil density) increases and lowered as resistance decreases. Typical settings:

Integral Field Cultivator 4-5
Integral Moldboard Plow 3-5
Semi-Integral Moldboard Plow 2-4
Integral Chisel Plow 2-4
Integral Ripper/Subsoiler 1-3


RW55728A
RW55729A

AG,RX15494,1703 -19-26AUG99-1/1
