Using Sway Blocks

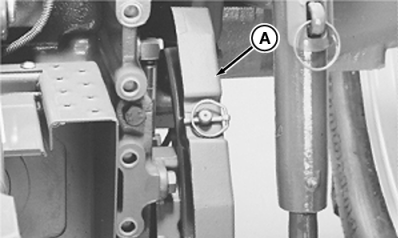

To minimize side sway of hitch, install sway blocks (A) in lower position.

If hitch has too much side sway with sway blocks installed, shims may be added between sway block support brackets (B) and PTO housing. Shims are available from your John Deere Dealer.

AG,RX15494,1704 -19-26AUG99-1/2

NOTE: Add or remove washers (C) between the head of the pin and the sway blocks to minimize movement of sway blocks.

Mount sway blocks (A) in upper position to allow side sway when hitch is lowered.

IMPORTANT: To prevent draft link interference, be sure distance between tires is:

Category 2 - 1.09 m (43 in.)

Category 3N - 1.09 m (43 in.)

Category 3 - 1.17 m (46 in.)
