OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: AG_RX15494_1705_19

Adjusting Implement Level

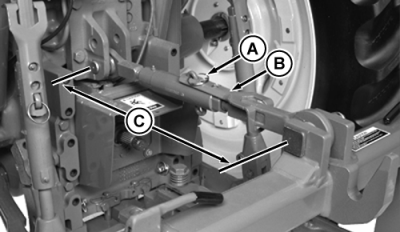

Adjust center link to level implement front-to-rear. Remove retaining ring (A) and lift adjusting handle wrench (B). Rotate center portion of center link to desired length.

Secure adjusting handle wrench with retaining ring.

Measure between centers of pins (C).

Normal Adjustable Range

Category 2...596-743 mm (23.5-29.3 in.)
Category 3...644-769 mm (25.4-30 in.)

AG,RX15494,1705 -19-26AUG99-1/1
