Adjusting Lift Links

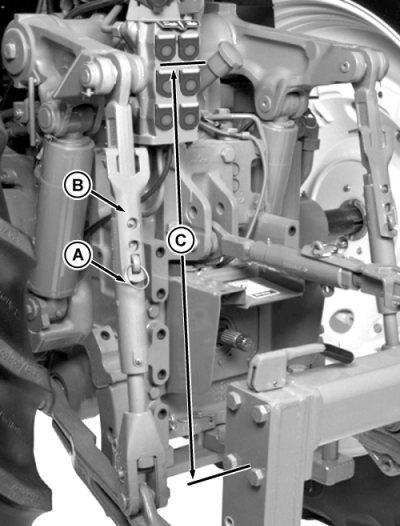

Adjust lift links to level implement side-to-side. Remove retaining ring (A) and lift up adjusting handle wrench (B). Rotate center portion of lift link to desired position. Position adjusting handle wrench against lift link body and secure with retaining ring to hold lift link in position.

Secure adjusting handle wrench with retaining ring.

Measure between centers of pins (C).

NOTE: Normal adjustment range is 772-919 mm (30-36 in.) with float locked out.
