Attaching Implement to Hitch

CAUTION: To avoid bodily injury or machine damage whenever an implement is attached, put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation.

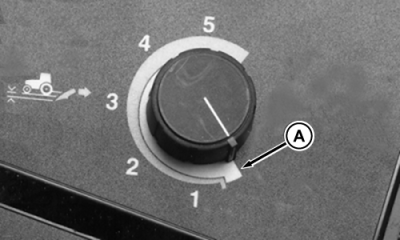

1. Turn load/depth control (A) fully counter clockwise before attaching or detaching implements.

2. Back tractor to implement with hitch points approximately in alignment. Put transmission in PARK and STOP engine.

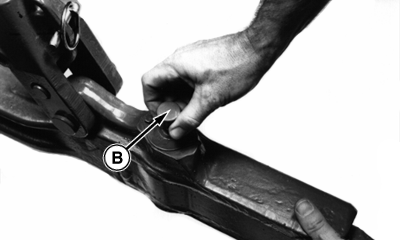

3. Slide lock pins (B) and extend telescoping draft link ends.

4. Slip draft links over implement hitch pins and secure with lock pins.

5. Carefully back up tractor making sure both left and right telescoping draft link ends are locked before using an implement.

AG,RX15494,1707 -19-26AUG99-1/3

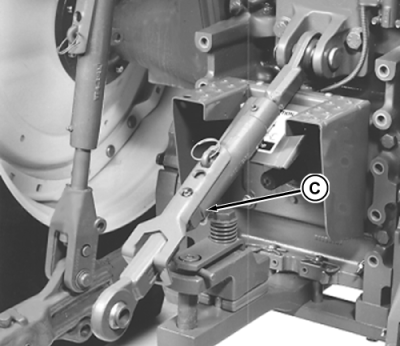

6. Remove center link (C) from transport hook and attach to top mast of implement.

7. Adjust lift links and center link. (See Adjusting Implement Level in this section).

AG,RX15494,1707 -19-26AUG99-2/3

8. Slowly pull hitch control lever (A) to raise implement. Check for interference. If necessary, adjust the upper height limit control.

9. Turn load/depth control (B) to desired setting.
