Detaching Implement From Quick Coupler

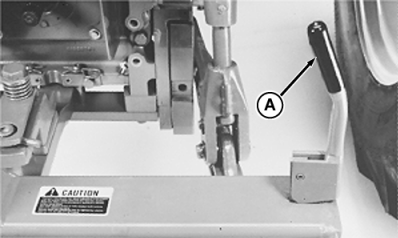

1. Raise both latch levers (A) with implement raised.

2. Disconnect hydraulic hoses and electrical connections.

3. Lower implement to ground. Continue lowering quick-coupler until hook clears implement hitch pins.

4. Carefully drive tractor away from implement.
