SCV Lever Detent Operation
Three-Position SCV
-

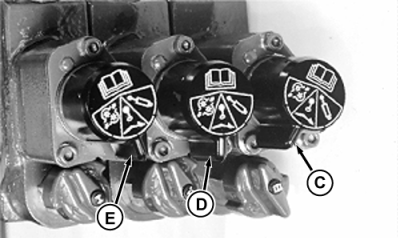

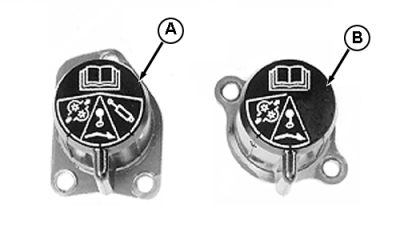

(A)
| Knob Position |
Function of Lever Detent |
| Turn Clockwise (C) to Detent Stop |
Automatic Detent-lever returns automatically when cylinder reaches end of stroke |
| Center (D) |
No Detent-lever returns to neutral when released |
| Turn Counter Clockwise (E) to Detent Stop |
Continuous Detent-lever must be manually returned to neutral |
Two-Position SCV
-
(B)
| Knob Position |
Function of Lever Detent |
| Turn Clockwise (F) to Detent Stop |
No Detent-lever returns to neutral when released |
| Turn Counter Clockwise (G) to Detent Stop |
Continuous Detent-lever must be manually returned to neutral |
|
Three-Position SCV/Two-Position SCV
|
