Adjusting Drawbar Height and Length

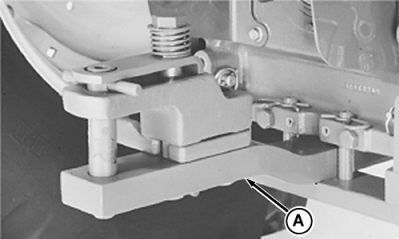

Height of drawbar is adjusted by turning offset (A) up or down. Remove the clevis assembly (B) and slide drawbar out and turn it over.

Install drawbar and attach clevis assembly to the top of the drawbar.

IMPORTANT: Observe drawbar load limitations. Strain is greatly increased by speed and rough terrain. Maximum vertical load should not exceed:

1430 kg (3150 lb)-Extended Position

2850 kg (6280 lb)-Short Position

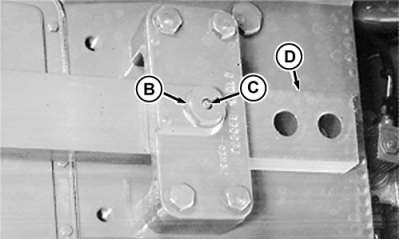

Remove nut (B) and retaining pin (C) to adjust drawbar length.

Slide drawbar (D) to desired position.

Install drawbar retaining pin and tighten hex nut to 410 N·m (300 lb-ft).

AG,RX15494,1732 -19-27AUG99-1/1
