Attaching PTO-Driven Implement

CAUTION: Entanglement in rotating driveline can cause serious injury or death.

Keep PTO shield and driveline shields in place at all times. Make sure rotating shields turn freely.

Wear close fitting clothing. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning PTO-driven equipment.

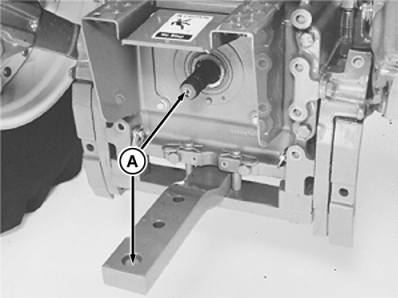

Lock drawbar in center position and remove clevis assembly.

Turn drawbar so offset is downward.

Attach implement to drawbar before connecting PTO drive line. If implement will be connected to quick-coupler, be sure drawbar will not interfere.

Connect drive line to PTO shaft. Turn shaft slightly by hand, to line up splines. Be sure yoke is in correct position and firmly locked.

Move PTO shield door to center position.
