Using PTO Shield

CAUTION: Avoid personal injury. The PTO shield must be in the correct position at all times. Do not use shield as a step.

Normal position of the PTO shield is in the lowered position (A). Drawbar visibility is improved for attaching an implement.

PTO shield must be in the center position (B) for use with PTO-driven implements.

Lift shield to raised position (C), to provide clearance while connecting implement drive line to the PTO shaft.

Move the PTO shield to center position before engaging PTO.

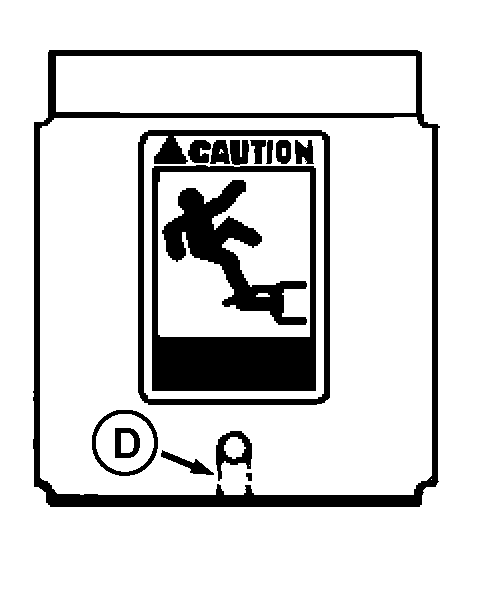

To connect an implement with an old-style tunnel shield, slot (D) must be cut in the PTO shield. Cut from the edge of the shield to the small hole.
