Changing PTO Stub Shaft

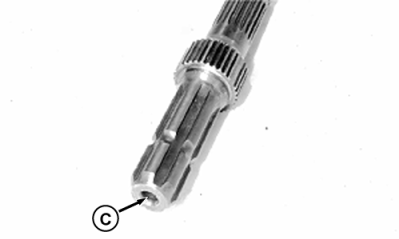

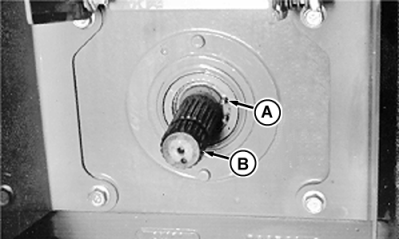

IMPORTANT: Implements can be operated at 540 rpm (6 splined end) only if the power input never exceeds 56 kW (75 hp). Operating PTO at lower speeds under heavy load could damage PTO. NOTE: The 1000 rpm stub shaft has 21 splines for heavy PTO loads while the 540 rpm stub shaft has 6 splines for loads requiring less than 56 kW (75 hp). Rotate the ends of the snap ring to align with flat surface of the shaft. Remove snap ring (A) and pull out PTO stub shaft (B). Clean stub shaft thoroughly, coat splines with John Deere High-Temperature/Extreme-Pressure/Non-Clay grease to prevent rust and install into housing. 540 rpm shaft - Rotate shaft back and forth while installing, to ensure shaft is correctly seated in housing; continue to push shaft in while installing snap ring. 1000 rpm shaft - Rotate shaft back and forth while installing until engagement is felt. NOTE: Shaft is correctly engaged when shaft turns with high effort. Install snap ring in groove to retain PTO stub shaft. IMPORTANT: Clean bore (C) thoroughly when installing PTO shaft for 1000 rpm use. Damage to PTO may result if bore is not clean. NOTE: A flattened area on the stub shaft facilitates removal and installation of the snap ring. |
|
CAUTION:
Avoid personal injury. PTO shaft may be hot from operation. Allow shaft to cool before changing.
AG,RX15494,1739 -19-28AUG99-1/1 |
