Single Rear Wheel Tread Settings-16-Position Steel Wheels Rack and Pinion Axle-2438 mm (96 In.)
|

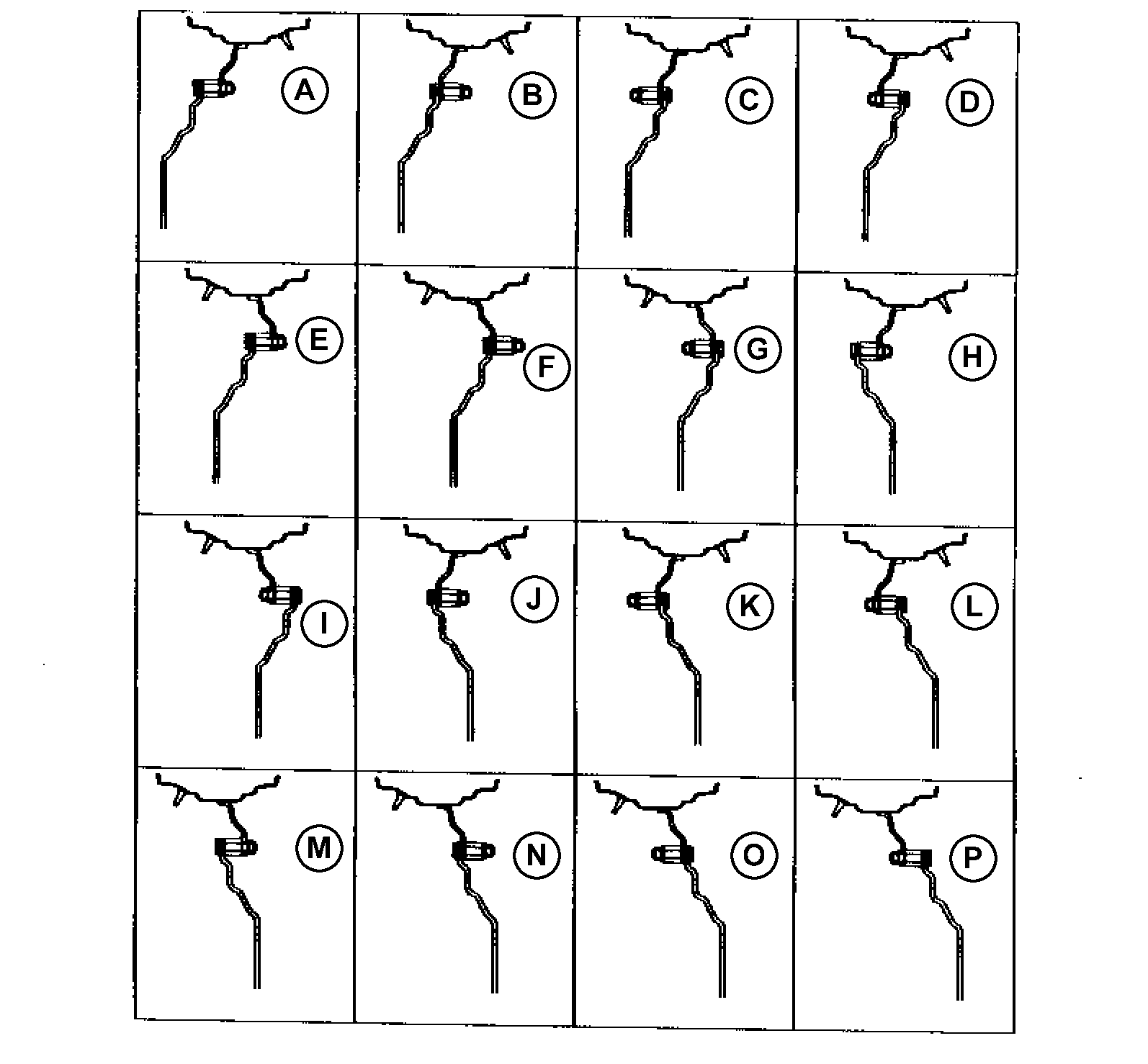

Steel single wheel positions for 14.9, 320, and 420 tires are viewed from behind left rear tire.
|
|
| Minimum |
Maximum |
Minimum |
Maximum |
| |
|
|
|
| A-1525 mm (60.0 in.) |
1801 mm (70.9 in.) |
I-1776 mm (69.9 in.) |
2251 mm (88.6 in.) |
| B-1525 mm (60.0 in.) |
1852 mm (72.9 in.) |
J-1784 mm (70.2 in.) |
2259 mm (88.9 in.) |
| C-1525 mm (60.0 in.) |
1895 mm (74.6 in.) |
K-1827 mm (71.9 in.) |
2302 mm (90.6 in.) |
| D-1525 mm (60.0 in.) |
1946 mm (76.6 in.) |
L-1877 mm (73.9 in.) |
2352 mm (92.6 in.) |
| E-1631 mm (64.2 in.) |
2106 mm (82.9 in.) |
M-2038 mm (80.2 in.) |
2513 mm (98.9 in.) |
| F-1682 mm (66.2 in.) |
2157 mm (84.9 in.) |
N-2088 mm (82.2 in.) |
2563 mm (100.9 in.) |
| G-1725 mm (67.9 in.) |
2200 mm (86.6 in.) |
O-2131 mm (83.9 in.) |
2606 mm (102.6 in.) |
| H-1733 mm (68.2 in.) |
2208 mm (86.9 in.) |
P-2182 mm (85.9 in.) |
2657 mm (104.6 in.) |
|
|
AG,RX15494,1789 -19-01SEP99-1/1
|
|
