Accessing Batteries

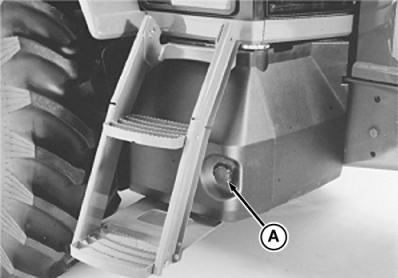

Batteries for tractors with COMFORTGARD ™ cab are located on right side below cab. To gain access, loosen knob (A) and slide off covers.

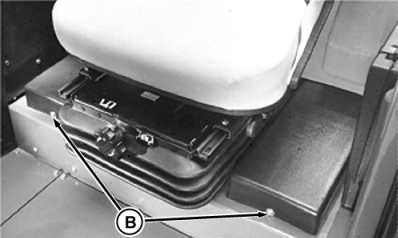

Batteries for open-station tractors are located on either side of the seat. Remove covers (B) to gain access.

RW55016A
RW55083A

COMFORTGARD is a trademark of Deere & Company

AG,RX15494,1828 -19-03SEP99-1/1
