OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: AG_RX15494_1834_19

Checking Engine Oil Level

SERVICE INTERVAL - DAILY OR 10 HOURS

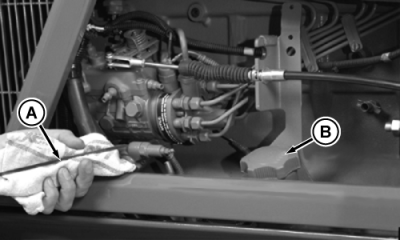

Remove dipstick (A) and check oil level with tractor on level ground. Oil level should be between the "ADD" and the top of the cross-hatch area on dipstick.

NOTE: Cross-hatch area is considered FULL.

If needed, add oil recommended in Fuels, Lubricants and Coolant Section in filler hole (B).

Do not operate engine with oil level below the "ADD" mark on dipstick.

AG,RX15494,1834 -19-03MAY00-1/1
