Draining Water from Fuel Filter

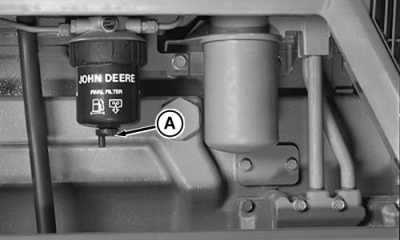

Loosen bleed valve on top of fuel filter. Drain water and sediment deposits from fuel filter at drain screw (A).

Tighten drain screw when fuel flows free of contaminants. Use fuel transfer pump to bleed air from system. Tighten bleed valve.

AG,RX15494,1837 -19-05MAY00-1/1
