Replacing Transmission Oil Filter

SERVICE INTERVAL

INITIAL INTERVAL - 100 HOURS
SCHEDULED INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions

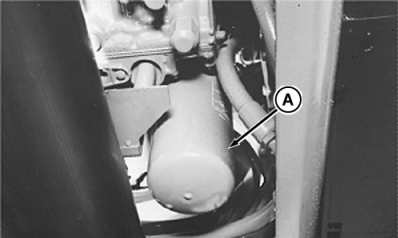

Remove filter (A).

Lubricate the new filter packing with hydraulic oil.

Install and hand tighten filter.

Check transmission oil level and add as required.

RW55046A

AG,RX15494,1857 -19-03MAY00-1/1
