Replacing Hydraulic Filter

SERVICE INTERVAL

INITIAL INTERVAL - 100 HOURS
SCHEDULED INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions

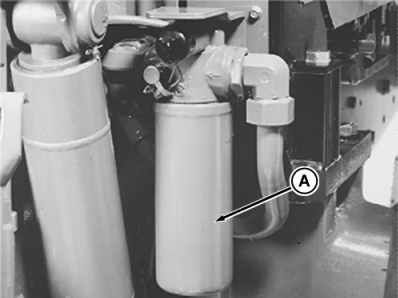

Remove filter (A).

Lubricate the new filter packing only with hydraulic oil.

Install and hand tighten filter.

Check oil level and add as required.

RW55047A

AG,RX15494,1858 -19-03MAY00-1/1
