Servicing Engine Air Intake System

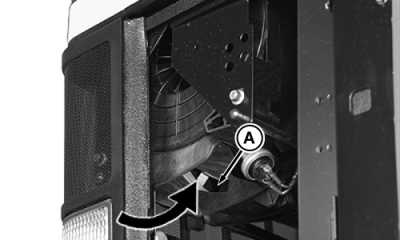

Check air intake system (A) for clogging.

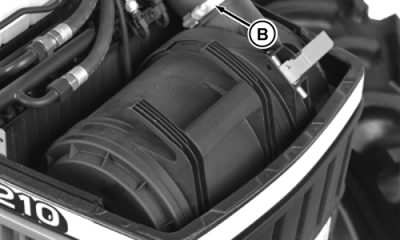

Check all air intake system joints (B) for tightness.

Check hose clamp at turbocharger for tightness.

NOTE: Leaking or damaged hoses are the cause of dirt entering the engine.

AG,RX15494,1860 -19-03MAY00-1/1
