Changing Transmission-Hydraulic Oil and Cleaning Suction Screen

SERVICE INTERVAL - 1500 HOURS



Park tractor on level surface and operate engine to warm oil.

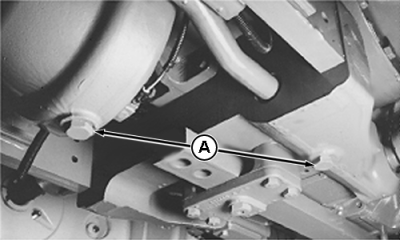

Stop engine and remove drain plugs (A) on bottom of transmission housing, differential housing, and MFWD clutch housing.

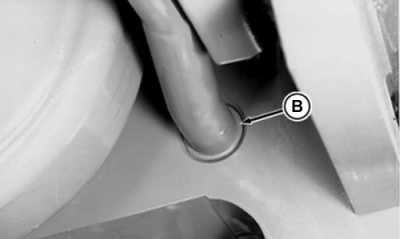

Remove oil line (B), located on the left front side of the differential case. Remove suction screen and wash screen carefully in solvent. Dry screen with compressed air.

Install screen and oil line, making sure gasket and O-ring are correctly positioned.

Reinstall plugs after oil has drained. Refill with Transmission-Hydraulic oil.

NOTE: Capacities are average values and may vary between tractors or each oil change.

System Capacities

PowrQuad ... 57 L (15 gal)
PowrQuad with MFWD ... 64 L (17 gal)
PowrQuad with Creeper ... 61 L (16 gal)
PowrQuad with MFWD and Creeper ... 68 L (18 gal)




Operate engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.
