Changing Hi-Crop Rear Axle Housing Oil

SERVICE INTERVAL - 1500 HOURS



1. Park tractor on level surface.

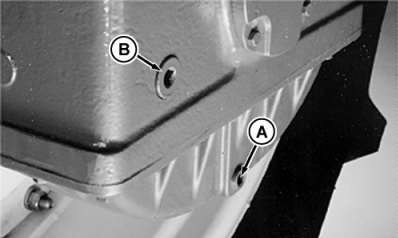

2. Remove plug (A) to drain oil. Replace plug after oil has drained.

3. Remove fill plug (B) and add John Deere GL-5 Gear Lubricant (85W-140).

Hi-Crop Rear Axle Housing Capacity

7210,7410,7510 ... 3.8 L (4 qt)



RW22205A

AG,RX15494,1868 -19-04MAY00-1/1
