OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: AG_RX15494_1869_19_04MAY00.htm

Lubricating Draft Link Support Shaft Bushing

SERVICE INTERVAL - 1500 HOURS

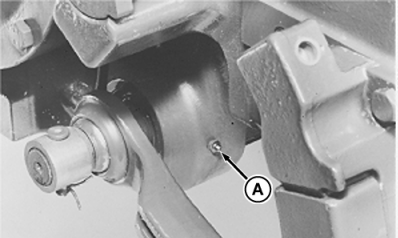

Lubricate support shaft bushing (A) with grease.

RW55043A

AG,RX15494,1869 -19-04MAY00-1/1
