OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: AG_RX15494_1881_19

Replacing Fuel Pre-Filter

SERVICE INTERVAL - 750 HOURS *

* Interval can vary according to operating conditions

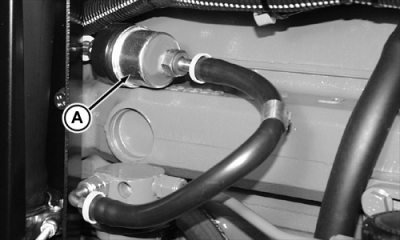

IMPORTANT: Before removing pre-filter (A) verify "IN" is marked on fuel tank end of filter. Incorrect installation could cause damage to transfer pump.

1. Shut off fuel at fuel tank.

2. Remove old pre-filter from lines.

3. Install new pre-filter with IN mark toward the fuel tank.

IMPORTANT: Failure to replace clogged or damaged pre-filter could result in damage to the transfer pump.

AG,RX15494,1881 -19-05MAY00-1/1
