OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: AG_RX15494_1884_19

NOTE: Brake bleed screws are on both sides of the differential case.

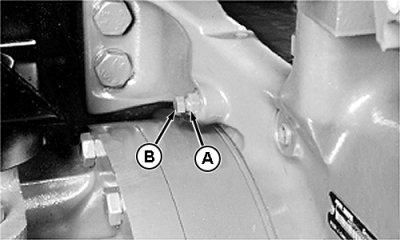

1. Loosen the brake bleed port jam nuts (A) a minimum of one complete turn.

2. Open the bleed screws (B) one and one half turns.

3. Start engine and pump the left and right brake pedals together three times with one of the pedals at least 13 mm (0.5 in.) lower than the other.

4. Lock the brake pedals together and depress the brake pedals for a minimum of 15 seconds.

5. Close the bleed screws and tighten jam nuts with pedals still depressed.

6. Stop engine and depress each brake pedal. Resistance should be present before the pedal reaches the stop.

IMPORTANT: Any noticeable pedal drift downward from the point of resistance indicates brake leakage.

AG,RX15494,1884 -19-03MAY00-1/1
