Replacing Front Lights

1. Open hood and remove side shields.

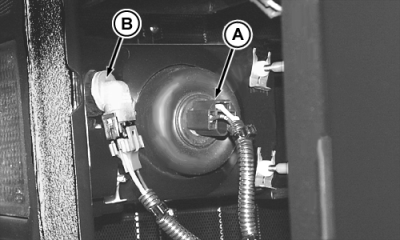

2. Remove connector (A). Remove dust boot, and unlatch retaining spring. Remove lamp element and install new element. Latch retaining spring. Install dust boot and connector.

3. To replace side lamp (B), twist connector 1/4 turn and pull to remove. Replace element and install connector.

AG,RX15494,1890 -19-09MAY00-1/1
