Replacing Rear Warning Light

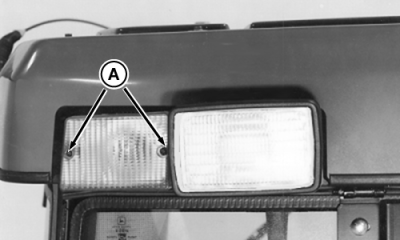

Remove screws (A) securing lamp to housing.

Unfasten lamp retainer and pull bulb from housing.

Disconnect bulb from wiring harness and connect new bulb.

RW55749A

AG,RX15494,1897 -19-05MAY00-1/1
