Replacing Fuses and Relays

IMPORTANT: DO NOT install a fuse in location F10. This is for diagnostic readout and calibration of electronic systems used by your John Deere Dealer.

Fuse replacement must be the same rating as the original.

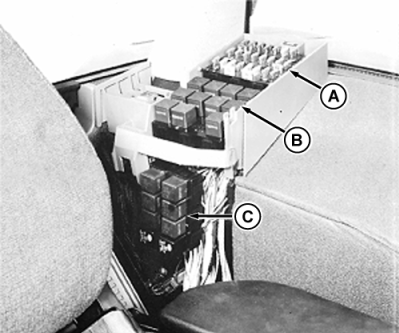

Tractors With ComfortGard Cab:

Remove magnetic cover to access fuse panel (A).

Remove top and side cover to access relays on upper panel (B) and lower panel (C).

RW21128A

AG,RX15494,1899 -19-05MAY00-1/2

Open-Station Tractors:

Remove cover to access fuse and relay panel (A).

RW26532

AG,RX15494,1899 -19-05MAY00-2/2
