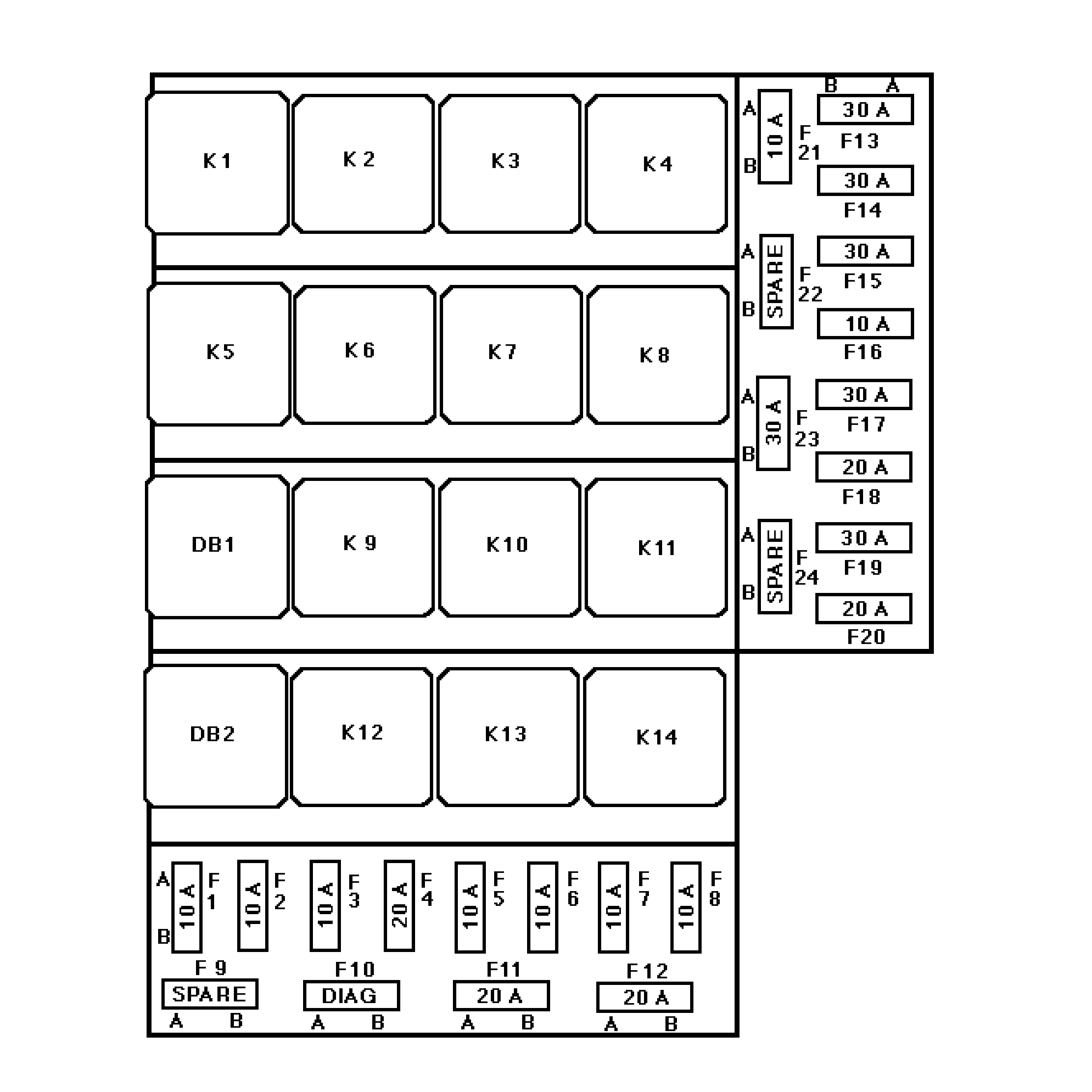

F1-CCU-Creeper Sensor, and Radar
F2-Brakes, PTO, MFWD, and Differential Lock
F3-Performance Monitor, Tachometer Display, and Warning Horn
F4-CCU-Central Control
F5-HCU-Hitch Control
F6-RCU-Reverser Control
F7-Spare
F8-Spare
F9-Spare
|
F10-HCU and CCU Diagnostic Calibration
F11-Radio, Left Tail Light and Seven-Terminal Outlet
F12-Reverser Switch and Right Tail Lights
F13-Key Switch
F14-Lighter, Turn Signal Switch, and Horn
F15-Convenience Outlet
F16-Spare
F17-Hi-Low Head Lights, Hazard Indicator, and Tach Display Back Light
|
F18-Front Flood Lights
F19-Rear Fender Flood Lights
F20-Turn Signal and Hazard Lights
F21-Accessory Power
F22-Spare
F23-Relay Power
F24-Spare
K1-Head Lights
K2-Hi-Low Beam
K3-Front Floods
|
K4-Rear Floods
K5-Right Fender Turn/Hazard
K6-Left Fender Turn/Hazard
K7-7-Pin Socket Accessory
K8-Electronics (ELX) Relay
K9-Accessory Relay
K10-Grounding Relay
K11-Not Used
K12-7-Pin Accessory Power Relay
K13-Blank
K14-Accessory Relay
|
