Operating the PTO

CAUTION: Avoid personal injury. Stop the engine and allow the PTO driveline to stop before making adjustments, connections, or cleaning of PTO-driven equipment.

Always disengage the PTO when not in use.

PTO can be engaged or disengaged without operating the clutch.

NOTE: PTO and Service Alert indicator lights will flash with an audible warning signal if operator leaves seat with PTO engaged. PTO does not disengage when operator leaves seat.

If the engine is stopped and then restarted while the PTO is running, the PTO will not operate. Disengage, then engage the PTO.

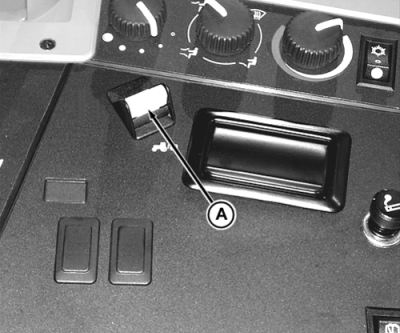

Push down and forward on PTO switch (A) to engage PTO clutch. PTO indicator on display panel will show PTO engagement.

Pull switch back to disengage PTO.

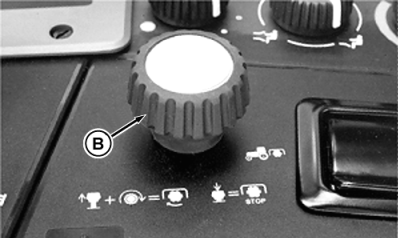

Lift and turn rotary knob (B) clockwise to engage PTO clutch.

Push down on knob to disengage PTO.

Engagement of PTO usually takes less than five seconds. Extreme cold may require PTO switch to be cycled several times.

RF30435,0000003 -19-05MAR01-1/1
