Connecting Cylinder Hoses

CAUTION: Prevent possible personal injury. Push Selective Control Valve (SCV) lever lockout to the right (transport lock position) before attaching implements to prevent implement movement.

Hydraulic hoses need to be reversed at the coupler if cylinder is extending when it should be retracting.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Replace damaged hoses. Keep hose ends clean.

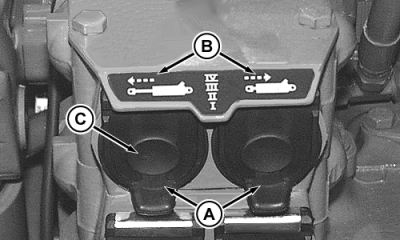

Clean dust covers (A).

NOTE: Remote cylinder couplers are numbered I through IV. Couplers are identified from bottom to top.

Check to be sure symbols (B) on coupler identification plate, indicating cylinder movement, match cylinder travel direction.

When using SCV with single acting cylinders, plug hose into extend side of coupler (C).

Push hose firmly into receptacle.

RF30435,0000004 -19-05MAR01-1/1
