Cleaning or Replacing ULTRAGARD™ Cab Air Filters-Optional

CAUTION: Prolonged exposure to pesticides can cause injury or death.

Use only John Deere ULTRAGARD XL Pesticide Cab Air Filters for both fresh air and recirculated air.

Use recommended personal protective equipment when removing or cleaning air filters, as indicated by pesticide labels.

Remove air recirculation filter housing covers (A) located behind the seat. Remove filters and shake out dust.

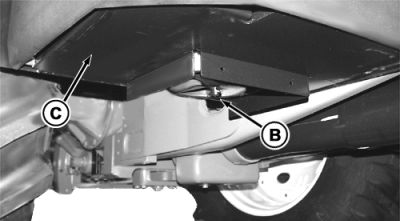

Remove wing nut (B) and cover of fresh air filter housing located near battery box (C). Slide foam pre-filter off fresh air filter and remove accumulated dust. Pre-filter can be washed in water or mild detergent. Shake dust off fresh air filter.

Replace filters at recommended interval. Replace damaged filter(s) immediately. Make sure gasket is in good condition.

ULTRAGARD is a trademark of Deere & Company

RF30435,0000019 -19-04APR01-1/1
