Lubricating Rear Axle Bearings

SERVICE INTERVAL - 750 HOURS *

* Daily or Every 10 Hours when operating in extremely wet or dusty conditions

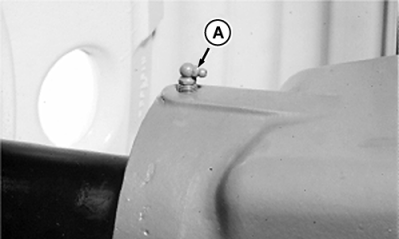

Apply grease to each fitting (A) until grease appears at seals, or a maximum of 25 shots.

RW22094A

RF30435,0000030 -19-23APR01-1/1
