Using Safety Chains

causym CAUTION: Avoid possible injury from accidental disconnection of implement. Use a safety chain with a strength rating equal to or greater than the gross weight of the drawn equipment. Allow only enough slack in the chain to permit turning.

IMPORTANT: Avoid possible damage to tractor, drawbar, and implement. DO NOT use safety chain for towing.

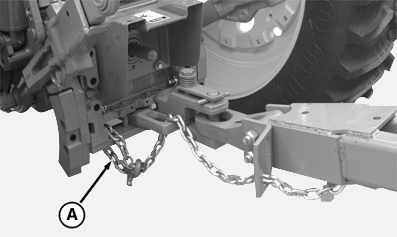

Attach safety chain (A) to the drawbar support.

RXA0052370

RF30435,000004C -19-15MAY01-1/1
