Using a Booster Battery

causym CAUTION: Gas given off by batteries is explosive. Keep sparks and flames away from batteries. Make last connection and first disconnection at a point away from batteries.

IMPORTANT: Be sure polarity is correct before making connections. Reversed polarity will damage electrical system and may cause battery to explode.

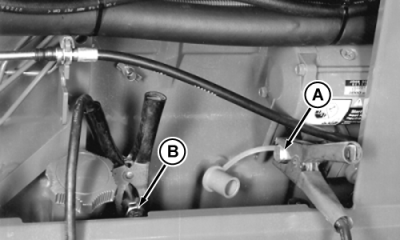

1. Attach one cable (red) to the remote positive terminal (A) of the starter and positive terminal of booster battery.

2. Attach the second (black) battery cable to negative terminal of booster battery. Attach other end to ground terminal (B) of tractor.

3. To disconnect, remove ground cable (B) first.

RW56286A

RF30435,0000056 -19-29MAY01-1/1
