MFWD Axle Housing Oil-Hi-Crop Rear Axle

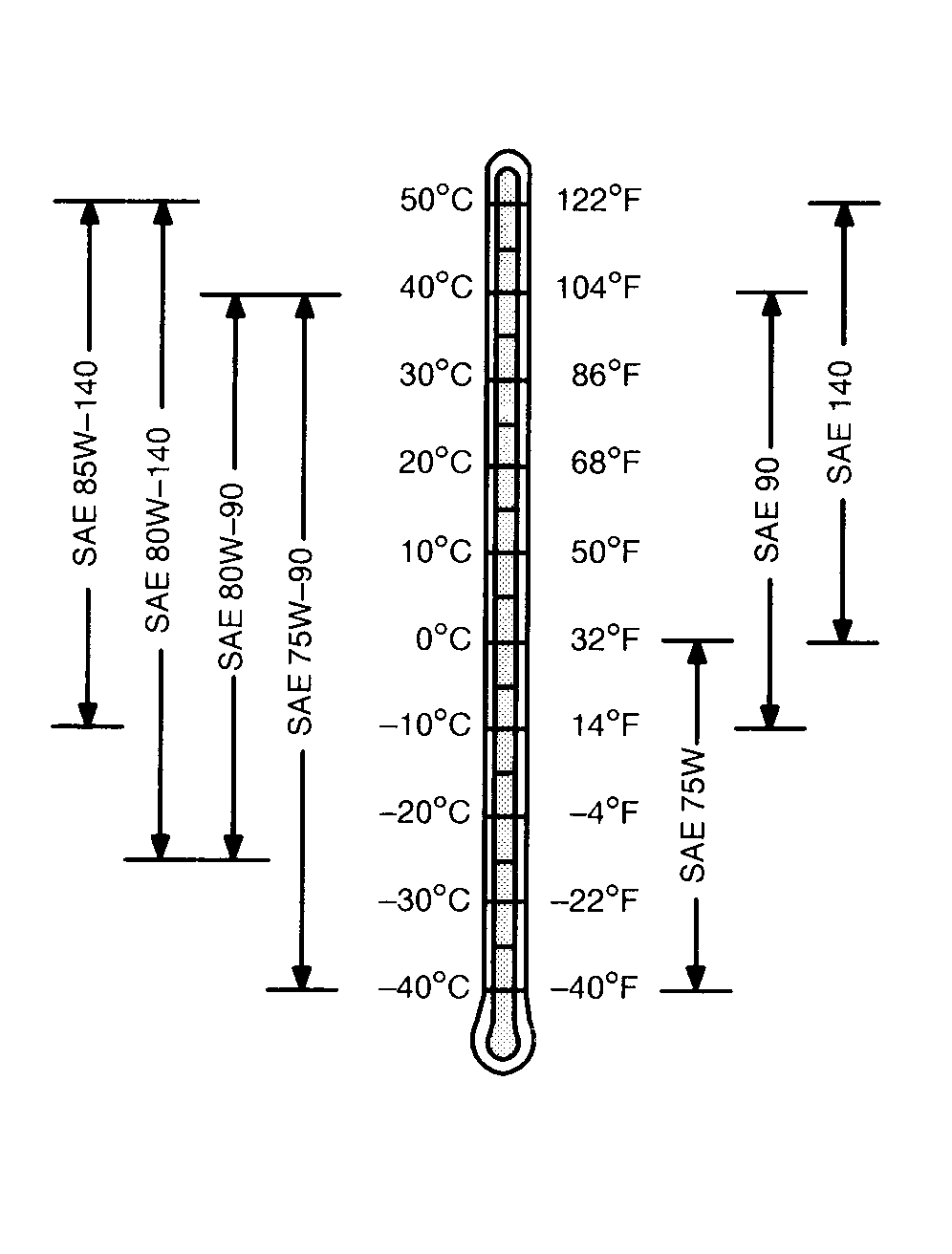

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere GL-5 GEAR LUBRICANT
  • John Deere EXTREME-GARD ™

Other oils may be used if they meet the following:

  • API Service Classification GL-5
TS1653

EXTREME-GARD is a trademark of Deere & Company

RF30435,000005C -19-29MAY01-1/1
