Checking Transmission-Hydraulic Oil Level

IMPORTANT: Operation with higher fill levels can result in additional power loss and heat generation. See 'Using Implement Requiring Large Volumes of Oil' in Remote Hydraulic Connections Section.

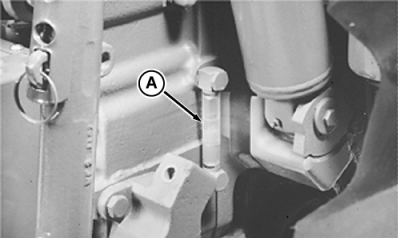

Observe oil level in site glass (A) with tractor on level ground, three-point hitch in the lowered position, and engine stopped. Oil level should be at the upper mark on the glass.

NOTE: Oil level will be lower with engine running or with hitch raised.

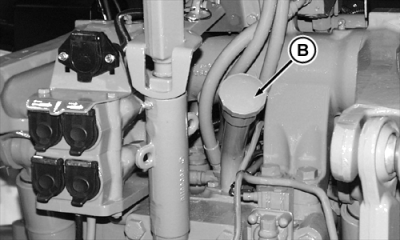

If oil level is below the lower mark, remove filler cap (B) and add hydraulic oil.

RF30435,000005E -19-29MAY01-1/1
