Checking MFWD Wheel Hub Oil Level

Park tractor on level surface.

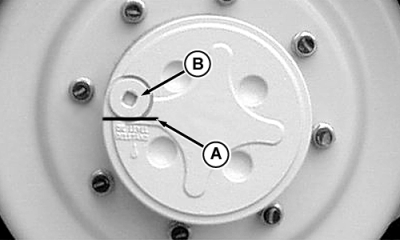

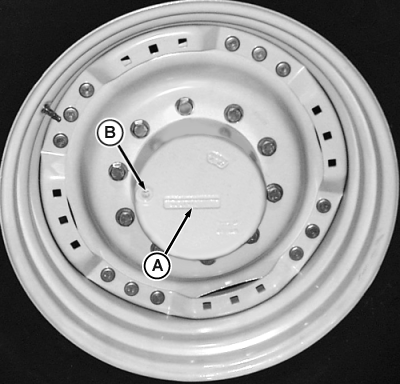

Turn wheel hubs until the words OIL LEVEL are horizontal (A).

Remove plug (B). Add John Deere HY-GARD oil as necessary until oil level is even with bottom of plug hole. Install plug.

RF30435,0000060 -19-29MAY01-1/1
