Mounting Fenders on Loader-Equipped Tractors

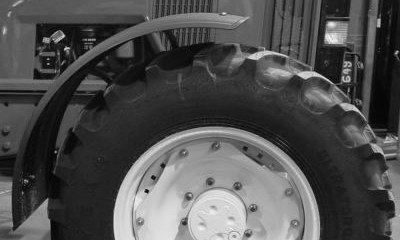

Adjust fenders. See Adjusting Fenders-Version "B" Axle in Wheels, Tires, and Treads Section. To ensure fenders clear loader frame during operation, reverse fenders side-to-side.

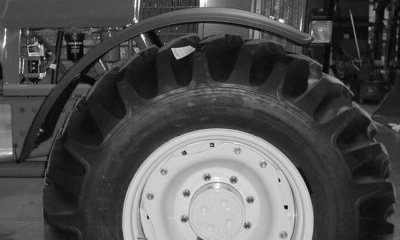

Fender will cover more of front portion of tire after this adjustment.

RF30435,0000063 -19-01JUN01-1/1
