Using Mechanical Front-Wheel Drive
|
|
|

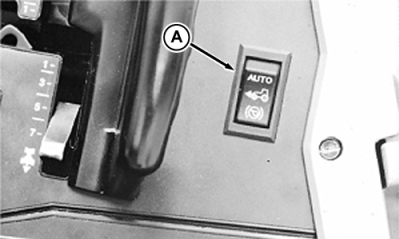

COUPLE BRAKE PEDALS TOGETHER Reduce speed when driving on icy, wet, or graveled surfaces Engage BRAKE ASSIST position of MFWD switch for four-wheel braking Ballast tractor correctly Mechanical front-wheel drive can be engaged and disengaged in all gears (forward and reverse) during operation and under full load. Switch (A) has three operating positions. Center ON Position-engages MFWD. Indicator on display console will show engagement. |
Top AUTO Position. Indicator on display shows MFWD engagement. MFWD automatically disengages when pressing either brake pedal, or at speeds above 19 km/h (11.8 mph). MFWD automatically engages when speed falls below 18 km/h (11.2 mph). MFWD engages when BOTH brake pedals are depressed at speeds above 19 km/h (11.8 mph). Bottom BRAKE ASSIST Position-MFWD OFF except when BOTH brake pedals are depressed at speeds above 19 km/h (11.8 mph). |
CAUTION:
Avoid personal injury or death from losing control of tractor. When driving tractor on roads:
RF30435,0000074 -19-12JUN01-1/1 |
