Lubricating MFWD Axle-Version "B"

SERVICE INTERVAL - 250 HOURS *

* Daily or 10 Hours when operating in extremely wet conditions



Use John Deere High-Temperature/Extreme-Pressure/ Non-Clay grease or other grease as specified in Fuels, Lubricants and Coolant Section. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

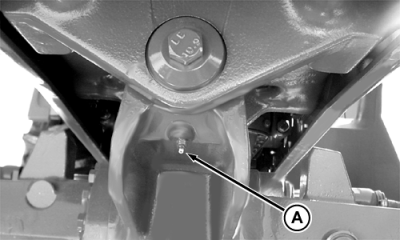

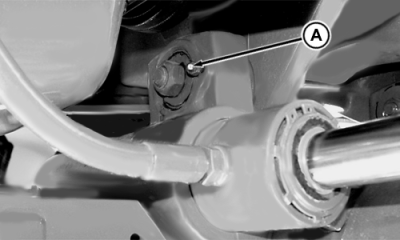

Axle Pivot -Lubricate fittings (A) with grease.

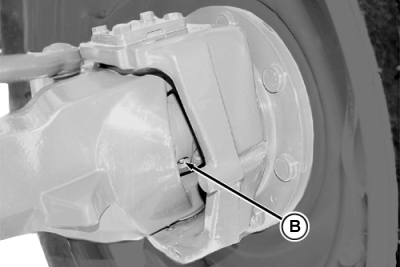

Steering Knuckle -Lubricate fittings (B), two per side, with grease.

RW27112
RW27110
RW27120

RF30435,0000AAC -19-02NOV00-1/1
