OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: RF30435_0000AAD_19

Lubricating MFWD Axle-Version "A"

SERVICE INTERVAL - 250 HOURS *

* Daily or 10 Hours when operating in extremely wet conditions

Use John Deere High-Temperature/Extreme-Pressure/ Non-Clay grease or other grease as specified in Fuels, Lubricants and Coolant Section. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

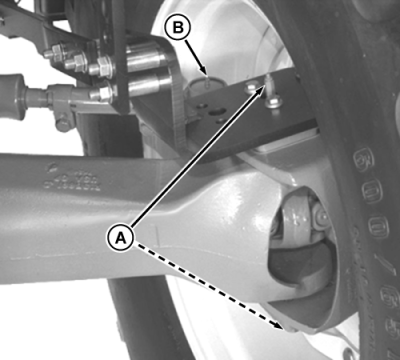

Kingpins -Lubricate fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -Lubricate fittings (B) with grease.

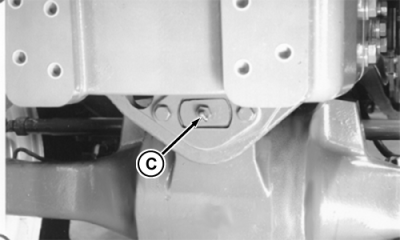

Axle Pivot -Lubricate fitting (C) with grease.

RF30435,0000AAD -19-02NOV00-1/1
