Changing MFWD Axle Housing Oil-Version "B"

Park tractor on level surface.

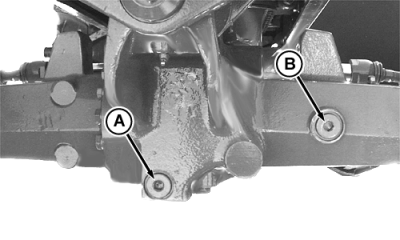

Remove drain plug (A). Replace plug after oil has drained.

Add oil through fill hole (B) until oil is even with bottom of hole. Install plug.

Operate tractor for a few minutes, recheck oil level, and add oil if necessary.

Tighten all plugs to 150 N·m (110 lb-ft).

RF30435,0000AAF -19-02NOV00-1/1
