Changing MFWD Wheel Hub Oil

SERVICE INTERVAL - 1500 HOURS



Park tractor on level surface. Rotate hub so that drain-fill hole (A) is at bottom of hub.

Remove plug and drain oil.

Turn hub so that words " OIL LEVEL " are horizontal.

Add John Deere HY-GARD oil until oil level is even with bottom of plug hole. Install plug

MFWD Hub Capacity

Version "A" (Hi-Crop) ... 3.8 L (4.0 qt)
Version "B" (7210, 7410) ... 0.8L (0.9 qt)
Version "B" (7510) ... 2.2L (2.3 qt)

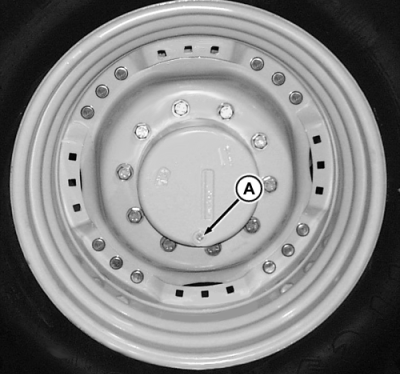

RW26479

Version "A" Hub

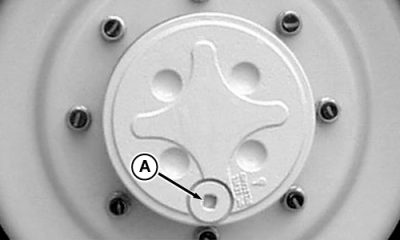

RW27117

Version "B" Hub

RF30435,0000AB0 -19-03NOV00-1/1
