Checking MFWD Axle Housing Oil Level-Version "A"

Park tractor on level surface.

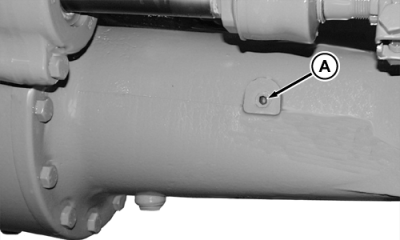

Check axle housing oil level (A). Oil level should be just below plug hole.

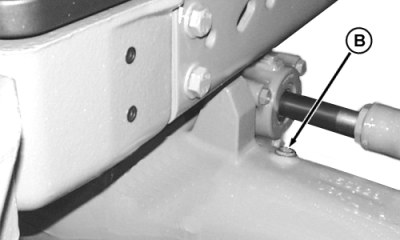

If oil level is low, remove plug (B) and add John Deere HY-GARD oil as necessary.

RF30435,0000AB1 -19-03NOV00-1/1
