Changing MFWD Axle Housing Oil-Version "A"

Park tractor on level surface.

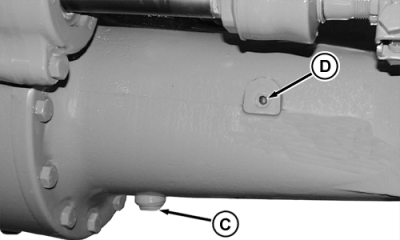

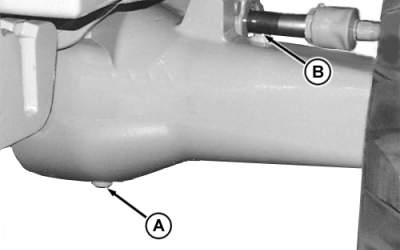

Remove drain plugs (A) and (C). Replace plugs after oil has drained.

Add oil through fill hole (B) until oil is even with bottom of hole (D). Install plugs.

Operate tractor for a few minutes, recheck oil level, and add oil if necessary.

Tighten all plugs to 70 N·m (52 lb-ft).

RF30435,0000AB2 -19-03NOV00-1/1
