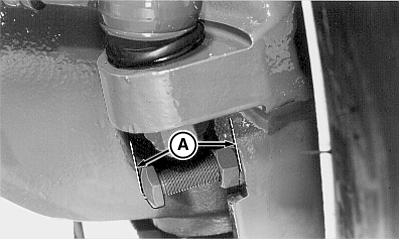

MFWD Steering Stop Dimensions-7510 Version "B" AxleSteering stop dimension (A) for version "B" axle is expressed in millimeters . Tractor turning radius increases as steering stop dimension increases. Steering stop dimensions in parentheses are for tractors without fenders. NOTE: Tractors with loaders may have different steering stop positions. Refer to the loader operator's manual. |
|
| Tread Settings | 1510 mm (60 in.*) |
1611 mm (64 in.*) |
1713 mm (68 in.*) |
1814 mm (72 in.*) |
1916 mm (76 in.*) |
2018 mm (80 in.*) |
2119 mm (84 in.*) |
2235 mm (88 in.***) |
|---|---|---|---|---|---|---|---|---|
| Tire Size | mm | mm | mm | mm | mm | mm | mm | mm |
| 13.6R28 | 105 (85) | 75 (55) | 50 (40) | 45 (35) | 35 (35) | 35 (35) | 35 (35) | 35 (35) |
| 380/85R28 14.9-28 14.9R28 |
105 (95) | 80 (75) | 70 (50) | 65 (35) | 40 (35) | 35 (35) | 35 (35) | 35 (35) |
| 380/85R30 14.9-30 14.9R30 |
(100) | 85 (80) | 70 (55) | 65 (40) | 40 (35) | 35 (35) | 35(35) | 35 (35) |
| 16.9-24 | ** | 95 (85) | 75 (60) | 65 (35) | 50 (35) | 35 (35) *** | ** | ** |
| 16.9-26 16.9R26 |
** | 95 (85) | 75 (60) | 65 (35) | 50 (35) | 35 (35) *** | ** | ** |
| 420/85R28 16.9-28 16.9R28 |
(105) | 95 (90) | 75 (70) | 65 (60) | 50 (35) | 35 (35) | 35 (35) | 35 (35) |
| 290/95R34 320/85R34 |
90 (85) | 80 (70) | 60 (45) | 50 (35) | 50 (35) | 35 (35) | 35 (35) | 35 (35) |
| 420/70R28 | (100) | 95 (85) | 75 (65) | 65 (55) | 50 (35) | 35 (35) | 35 (35) | 35 (35) |
| 480/70R28 | ** | 105 (95) | 85 (75) | 65 (55) | 55 (40) | 35 (35) | 35 (35) | 35 (35) |
| * Spacers required for exact settings. See your John Deere Dealer. | ||||||||
| ** Combination not used. | ||||||||
| *** Spacers required for these settings. See your John Deere Dealer. | ||||||||
RF30435,0000AB4 -19-10NOV00-1/1 |
