Adjusting Fenders-Version "B" Axle

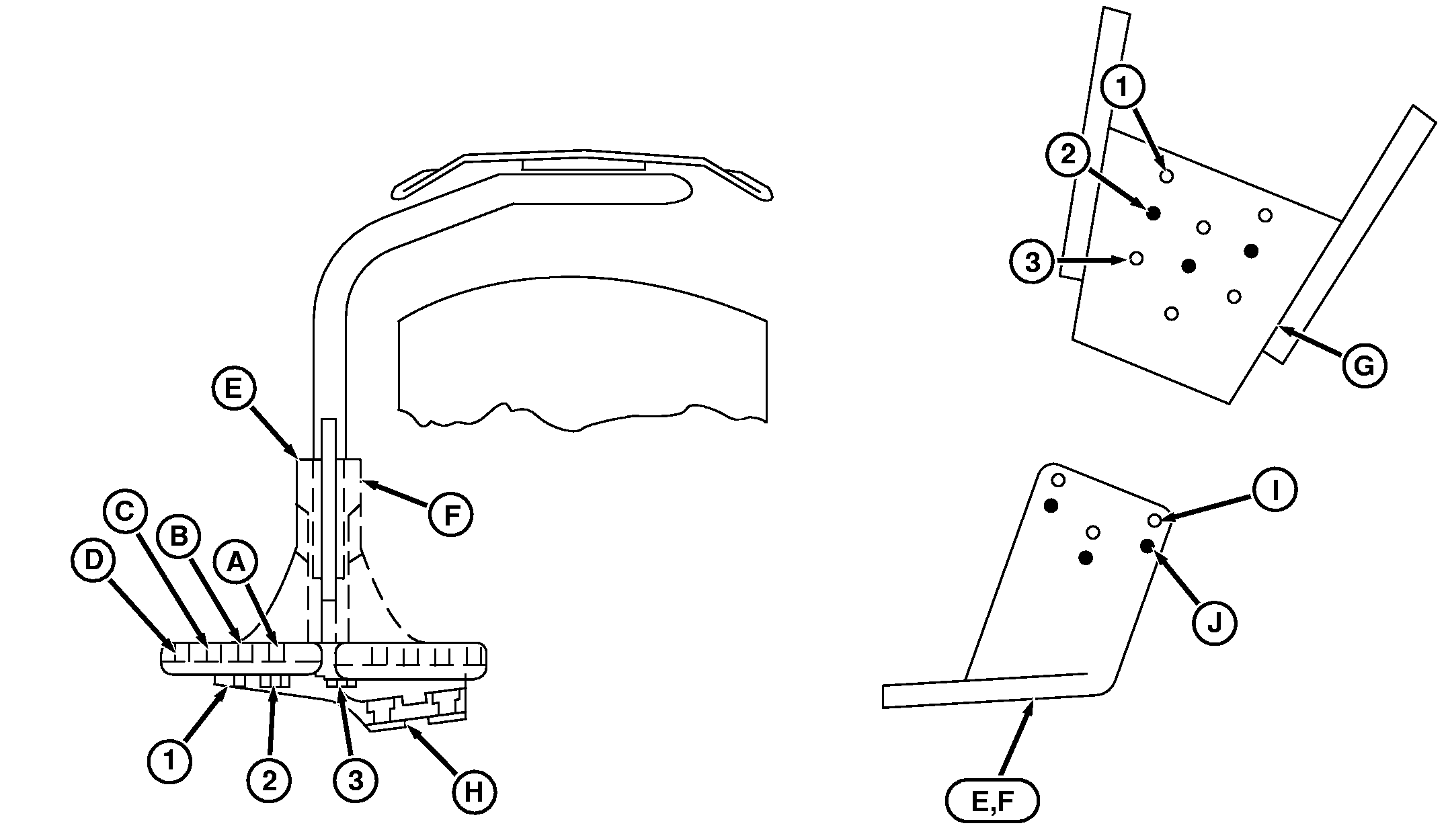

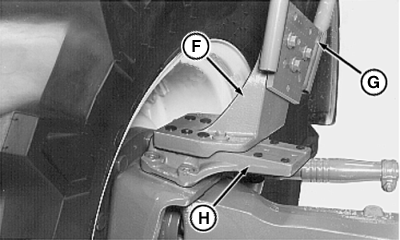

View from Behind Left Tire - - - - - - - View Looking Toward Left Side of Tractor

E-Bracket (Facing Outside)
F-Bracket (Facing Inside)
G-Fender
H-Bracket

Height Adjustment Example- (See Fender Settings-7510 Version "B" Axle, 14.9R28, 60 in. Tread Setting)

J-2 - align the lower hole (J) of bracket (E) or (F) and the middle hole (2) of fender (G).

Width Adjustment Example- (See Fender Settings-7510 Version "B" Axle, 14.9R28, 60 in. Tread Setting)

A-1 Inside - align hole (A) on bracket (F) with hole (1) on bracket (H).

(E) indicates the bracket is facing outside . (F) indicates the bracket is facing inside . When selecting "inside" or "outside", switch brackets from one side of the tractor to the other, so that brackets slant toward rear of tractor.

NOTE: Tractors with loaders may have different fender settings. Refer to loader operation manual.
