Adjusting Fenders-Version "A" Axle

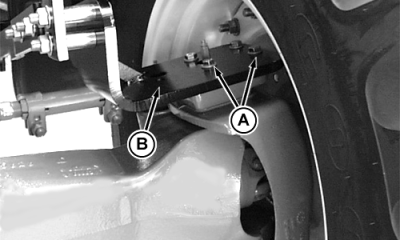

Position fender mounting bracket cap screws in outer holes (A) for tread settings with rim dished IN . Use inner holes (B) with rim dished OUT .

RW26472

RF30435,0000AB5 -19-10NOV00-1/2

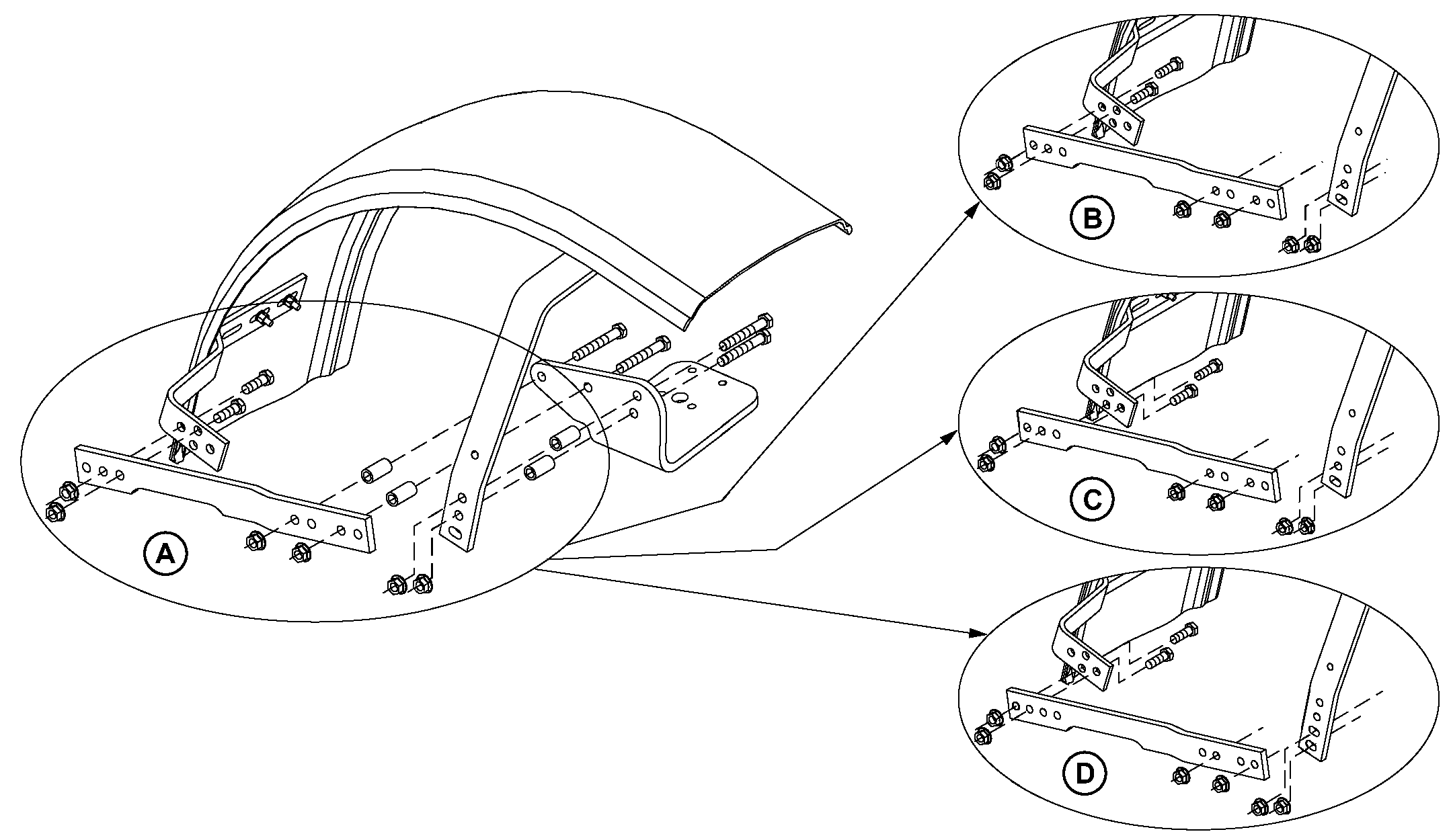

RW26454

Adjust fender support bracket referring to chart:

Tire Size Fender Setting

13.6R28 A

380/85R28 B
14.9R28 B
16.9R26 B

14.9-28 C
14.9R30 C
16.9-26 C
16.9R28 C
320/85R34 C
380/85R30 C
480/70R28 C

14.9-30 D
14.9R34 D
16.9R30 D
600/65R28 D




Tighten fender mounting bracket-to-steering arm cap screws. Tighten upper and lower support attaching cap screws.

Specification

Fender Mounting Bracket-to-Steering Arm -Torque 90 N·m (67 lb-ft)
Support Attaching Cap Screws -Torque 224 N·m (166 lb-ft)

RF30435,0000AB5 -19-10NOV00-2/2
