OMAR189660: 7210, 7410, and 7510 Tractors(50 001- ), Block File: RF30435_0000AB6_19

MFWD Tread Settings-Version "B" Axle, With Spacers

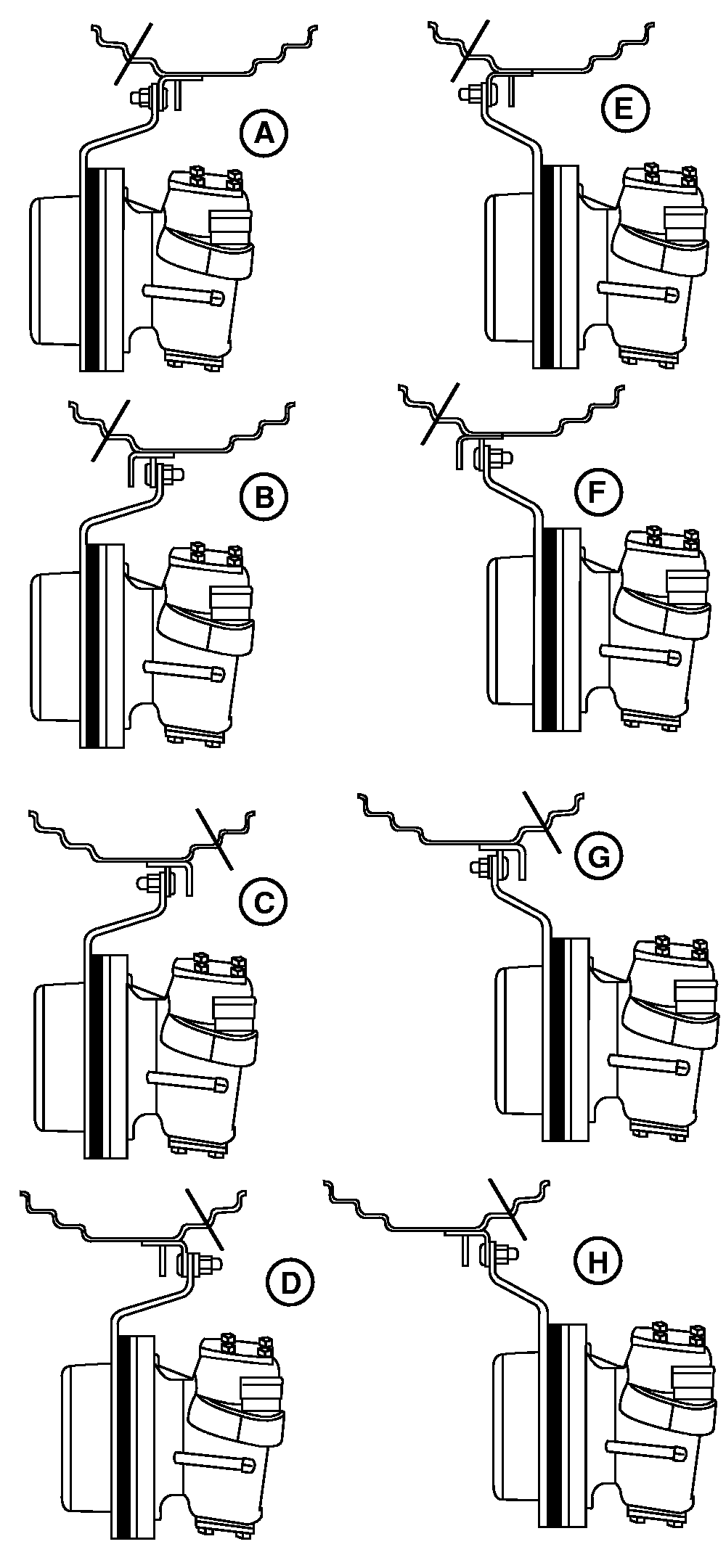

NOTE: Wheel as viewed from behind left front tire. Tread settings are measured at bottom centerline of tire. Use diagram as a guide to adjust rim and disk.

NOTE: Settings listed on this page require spacers. See your John Deere Dealer.

Tread Settings (WITH SPACERS)
	Valve Stem Out	Valve Stem In

A-	1524 mm (60 in.)	-
B-	1626 mm (64 in.)	-
C-	-	1727 mm (68 in.)
D-	-	1829 mm (72 in.)
E-	1930 mm (76 in.)	-
F-	2032 mm (80 in.)	-
G-	-	2134 mm (84 in.)
H-	-	2235 mm (88 in.)

24- and 26-Inch Rim 10-Bolt (7510)
Tread Settings (WITH SPACERS)

A-1727 mm (68 in.)
B-1828 mm (72 in.)
C-1930 mm (76 in.)
D-2032 mm (80 in.)

IMPORTANT: After setting wheel spacing, tighten rim-to-disk bolts to 310 N·m (230 lb-ft) and disk-to-hub nuts to 300 N·m (220 lb-ft). Tighten disk-to-hub nuts on 7510 to 480 N·m (355 lb-ft).

Tighten spacer-to-hub nuts to 300 N·m (220 lb-ft) for 7210-7410 and 480 N·m (355 lb-ft) for 7510. Tighten disk-to-spacer cap screws to 402 N·m (300 lb-ft) for 7210-7410 and 610 N·m (450 lb-ft) for 7510.

Adjust fenders and steering stops as required.
