Adjusting Toe-In-Version "A" MFWD Axle

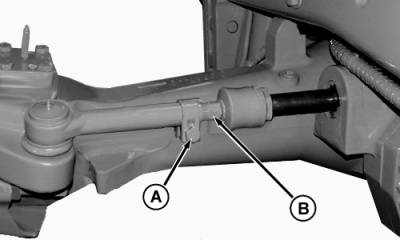

1. Loosen nut on right and left tie rod (A).

2. Rotate steering cylinder rod (B) as necessary to obtain toe-in or toe-out of less than 3 mm (1/8 in.). Each 1/8 turn equals approximately 4 mm (3/16 in.) change.

3. Tighten each nut to 75 N·m (55 lb-ft).

NOTE: Bolt threads should point to front of tractor.

RF30435,0000AB9 -19-21NOV00-1/1
