Adjusting Toe-In-MFWD And TLS Axle

1. Check to make sure axle is centered.

2. Loosen clamp nut (A) on right- and left-hand tie rod.

3. Rotate steering cylinder rod (B) as necessary to obtain toe-in or toe-out less than specifications. Each 1/8 turn equals approximately 4 mm (3/16 in.) change. Setting toe-in to 0.0 mm + or - 3 mm (1/8 in.) will provide least amount of tire wear on hard surfaced roads.

Specification

Maximum Toe-in or Toe-out -Distance 3 mm (1/8 in.)

4. Tighten each nut to specifications.

Specification

Tie-Rod Clamp Nut -Torque 75 N·m (55 lb-ft)

NOTE: Clamp cap screw threads should point to front of tractor.

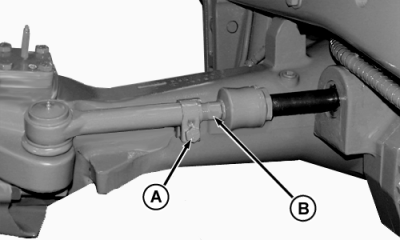

RW26951


A-Clamp Nut
B-Steering Cylinder Rod
